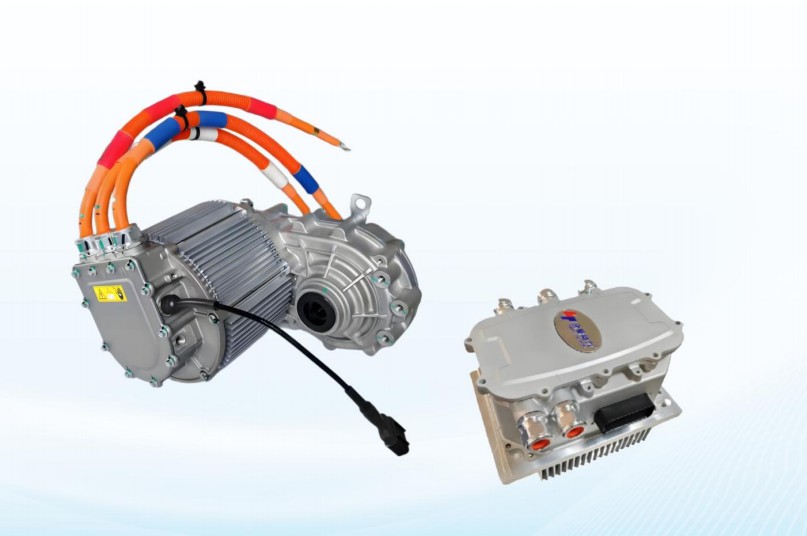

Figure 1: Combined motor and gearbox assembly and controller (company product)

Indian L5 electric tricycles operate under harsh daily conditions: frequent starts and stops in congested cities, rugged rural roads, steep slopes, scorching summers, and monsoon rains. Traditional powertrains often suffer from problems such as weak climbing ability, overheating, high failure rates, and high maintenance costs, constantly eroding the profit margins of fleet operators.

In response to this market, HEP Power has launched a two-in-one powertrain consisting of a permanent magnet synchronous motor (PMSM) and a gearbox, designed specifically for L5 electric tricycles and electric trucks, and equipped with a dedicated controller.

The product offers specifications covering three gross vehicle weights (GVW) of 1000kg, 1300kg, and 1500kg, providing an integrated and highly reliable power solution for passenger and freight tricycles.

Core advantages

1. Compact 2-in-1 integrated design

The motor and gearbox are integrated into a single component, significantly reducing connecting parts and assembly steps, thus lowering assembly costs for OEMs. Fewer mechanical connection points mean lower vibration and failure risk. A fixed reduction ratio of 9.93 provides strong torque amplification, with peak torques of 572 N·m, 715 N·m, and 810 N·m for the three gears, providing ample power for starting under full load and driving on inclines.

2. Three power levels to comprehensively cover various application scenarios.

Based on a 48V platform, the three rated power levels are 5kW / 6.5kW / 7.5kW, and the peak power levels are 8kW / 10kW / 11kW.

•GVW 1000kg Light passenger transport

•GVW 1300kg Standard passenger tricycles and light freight vehicles

•GVW 1500kg Heavy freight and high-capacity passenger transport

The motor has a maximum speed of 7500rpm and a rapid throttle response, making it suitable for driving in congested city traffic.

3. Natural cooling + IP67 protection, specially designed for India's harsh climate.

Featuring a natural cooling design, it eliminates the need for water pipes, completely eliminating the risk of leaks and reducing bill of materials (BOM) costs. With an IP67 dust and water resistance rating, it effectively resists monsoon rains and road dust, maintaining stable performance even in extreme heat.

4. Powerful controller equipped with CAN 2.0B communication

The controller operates on a low-voltage power supply range of 9~16V DC and uses a standard CAN2.0B interface, enabling seamless integration with the Battery Management System (BMS), instrument panel, and Vehicle Control Unit (VCU), significantly simplifying the vehicle development process. It has a rated current of 100A and a peak current of 450A, achieving instantaneous high power output; the operating temperature range covers -40℃ to 55℃. The overall weight is approximately 23kg to 28kg, striking a balance between lightweight design and mechanical strength.

5. Higher efficiency and lower operating costs

The high-efficiency PMSM motor extends driving range with the same battery capacity, reducing the frequency of charging for drivers. The simplified structure results in a lower failure rate and easier maintenance, improving end-user satisfaction and vehicle brand reputation.

Technical Specifications

Figure 2: Product Technical Specifications (Total Weight for Three Grades)

Application scenarios

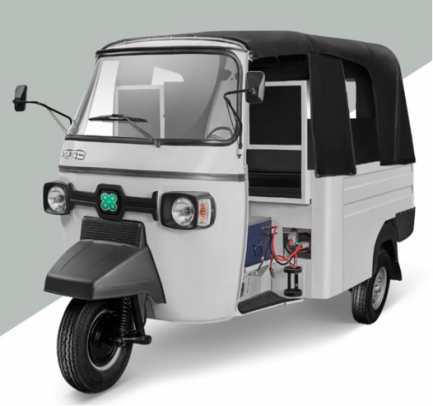

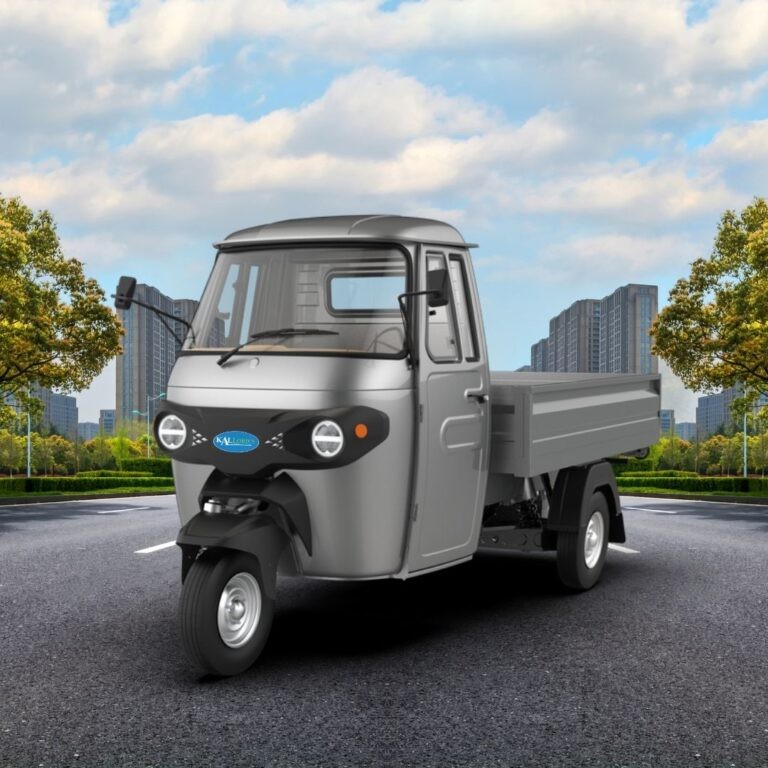

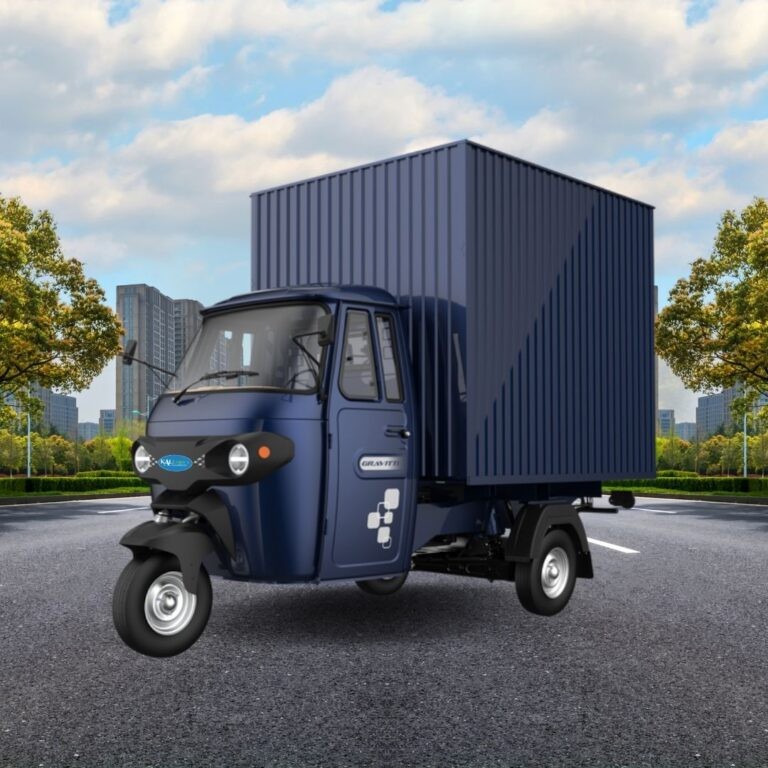

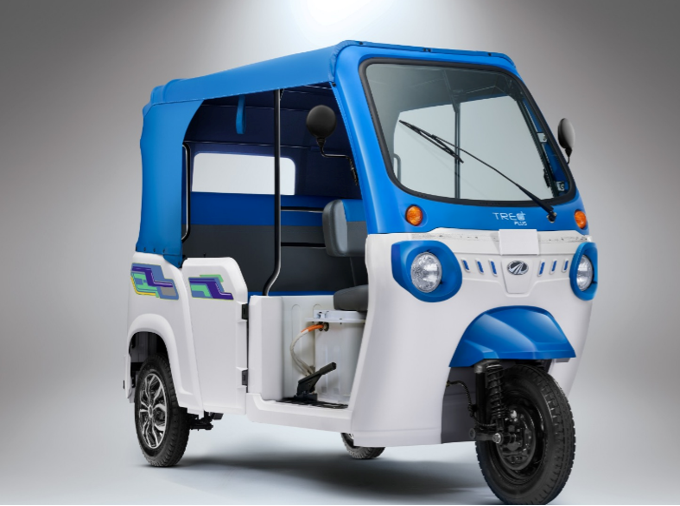

Figures 3-6: Application examples of L5 electric tricycles

This product is suitable for L5 electric passenger tricycles and electric freight vehicles, covering scenarios such as urban shared mobility, market goods delivery, and rural short-distance transportation.

Conclusion

The company has long been deeply involved in the field of motors and powertrains, providing reliable direct-supply solutions from the source factory to overseas customers. This product, with its integrated design, three-level power coverage, IP67 protection, and high cost-effectiveness, helps customers in India and emerging markets build more durable and worry-free L5 electric tricycles.
