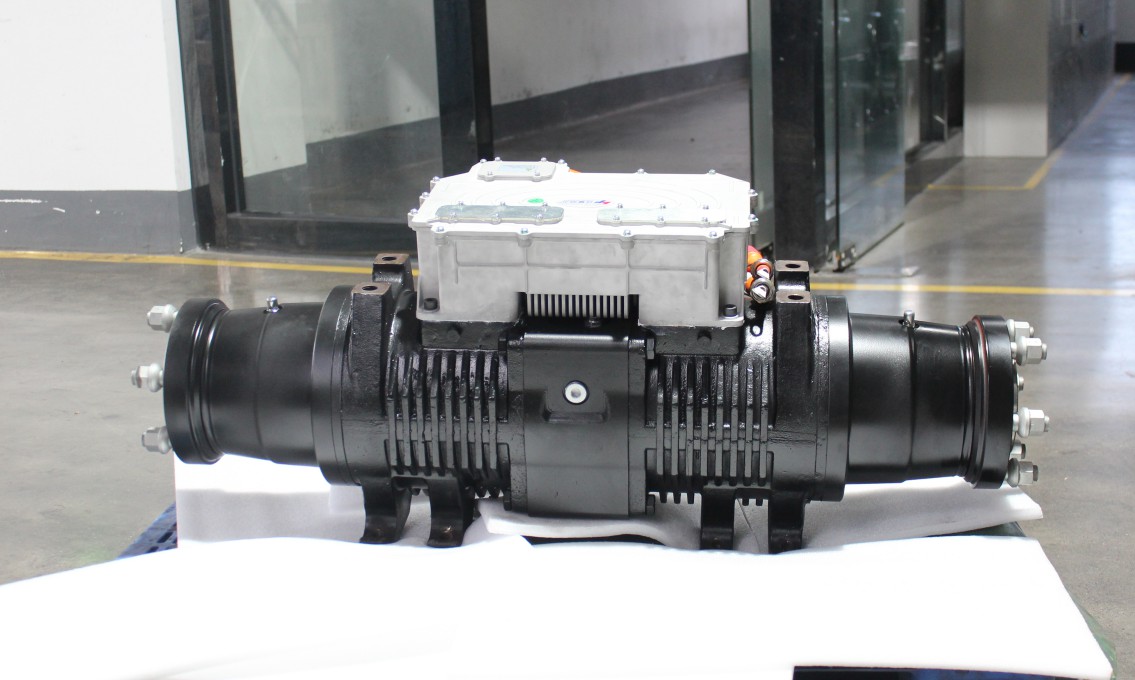

Drive system: The coaxial electric drive axle solution consists of a motor, planetary reducer, differential and axle housing coaxially arranged as a whole, with a short transmission chain, few parts and a simple structure. The coaxial arrangement and high integration effectively release chassis space. The axle assembly can be directly arranged on the chassis without suspension. It can achieve a higher energy density, which is in line with the future development trend of drive axle integration. It reduces maintenance costs during the life cycle and is relatively simple to maintain.

1. Space optimization: The coaxial integrated layout achieves high integration, short overall transmission chain, streamlined components, and compact structure, effectively saving chassis space.

Load-bearing upgrade: The drive motor, controller, reducer, and axle housing are highly integrated, providing strong overall rigidity and torsional resistance, which can be used for load-bearing reinforcement of the vehicle body structure. The coaxial planetary gear transmission features power distribution and load sharing, resulting in long gear life and high reliability.

2. Convenient maintenance: The platform-based modular design allows for compatibility with both large-tonnage drives and single/dual drives, with the same motor/reducer. The fan-shaped bridge is easy to disassemble and assemble, featuring wet braking for simple maintenance.

3. Lightweight and Cost Reduction: The motor, controller, reducer, and axle housing are coaxially integrated into a single unit, streamlining components, reducing raw material usage, and lowering processing and assembly costs. Compared to traditional parallel-axis drive axles, it reduces weight by 20%, aligning with the trend of integration and lightweight in the industrial vehicle industry.

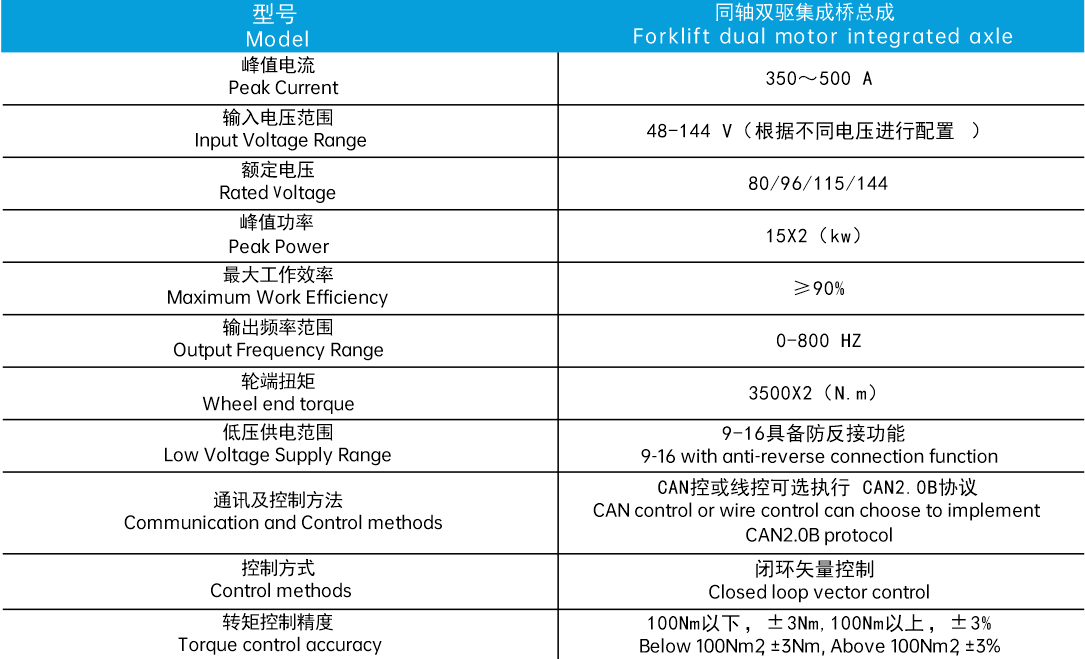

Technical Specifications：

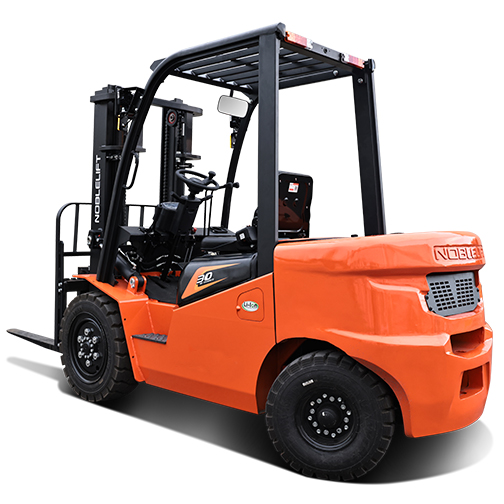

Application Model：Counterweight forklift  2.5T-4.5T
